Twin-shaft Concrete Mixer In Brick Making

Price: Negotiable
Model: JS750
Feeding Volume: 1200
Discharging quantity:
Mixing power: 38.5
Discharging Volume: 750
Discharging power:
Side Scraper:
Discharge scraper:
Certification: CE, ISO
Place of Origin: CHINA.
Trading Method: FOB/CIF/EXW Xiamen Port

Get Quote
The twin-shaft concrete mixer is a vital component in the brick making industry, known for its exceptional mixing performance and efficiency.

It is designed to handle the rigorous demands of brick production, ensuring the consistent and high-quality mixing of concrete materials.

JS750 twin-shafts concrete mixer can be widely used in industry and civil architecture engineering, such as Concrete Block factory、 medium、small prefabricate structure factory、highway and wharf and so on. The Concrete mixer can be used to mix solid concrete, plastic concrete, flowing concrete, light-aggregate concrete and a variety of sand slurry ,it also can combined with PL1200 batching machine as a simple mixing station and as mixing and batching system for block factory.
The twin-shaft concrete mixer with below feature:
1.Unique no-sticky shaft technology
Through the unique design and reasonable allocation of the mixing arms,mixing vanes,material feeding points,material,solve the concrete sticky shaft problem,and reduce the labors intensity.
2.Excellent mixing performance
The concrete mixer consoles with German technology,it has the feature of strong mixing performance,mixing homogeneous and high productivity.
3.Accurate measurement accuracy
Adop computer and meter control model,fast calculation speed,short response time.with patented technology of clicking point filling and automatic buckle say function,make the measurement accurately.
4. Simple operating performance.
The concrete mixer is control by computer,can be automaticlly control,and manual operation,simple operation,easy maintenance
5.Convenient for installation
The overall structure is module type,mixer tank,support leg,ladder,bucket are independent,easy to unloading,the installation and transportation is quite convenient.
6.Special Screen Mesh
With a Screen mesh on the top of bucket hopper,can avoid the big size of stone to enter the bucket,so as to protect the mould shoe be damaged by big size of stone.

TECHNICAL SPECIFICATION FOR TWIN-SHAFT MIXER

Model

Unit

JS500

JS750

Rated Feeding Volume

L

750

1200

Rated discharging Volume

L

500

750

Productivity

m3/h

25

≥35

Power of mixing motor

kw

18.5

38.5

Maximum size of aggregate

Pebble/Macadam

mm

80/60

80/60

Mixing blades Speed

 r/min

35

35

Mixing blades

Number

2x7

2x7

External dimension

(L×W×H )

Working condition

Transportation condition

mm

3400×2400×4900

3220×2400×2600

3400×2400×4900

3220×2400×2600

Weight (T)

kg

4000

5000



JS750 Twin shafts mixer 002.jpg

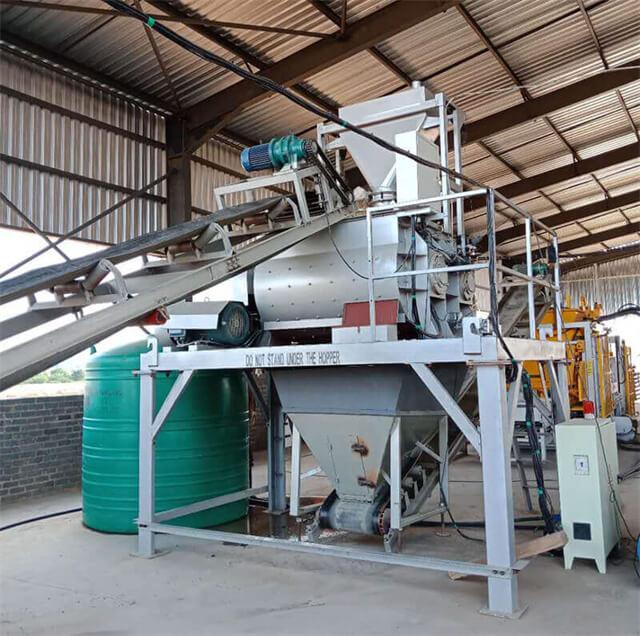

JS750 concrete mixer.jpg


The twin-shaft concrete mixer excels in homogenizing concrete mixtures, minimizing the segregation of materials, and enhancing the overall quality and strength of the concrete used in brick making.
It effectively reduces mixing time while delivering a well-blended and uniform concrete mix, contributing to the efficient and cost-effective production of high-quality bricks and concrete products.
Additionally, the mixer's robust construction ensures durability and longevity, making it a dependable asset for brick making operations.


This concrete mixer is widely used in the brick making industry for producing concrete blocks, pavers, and other precast concrete products.
It is suitable for both small-scale and large-scale brick manufacturing operations, offering consistent and reliable mixing performance to meet the demands of different production requirements.
