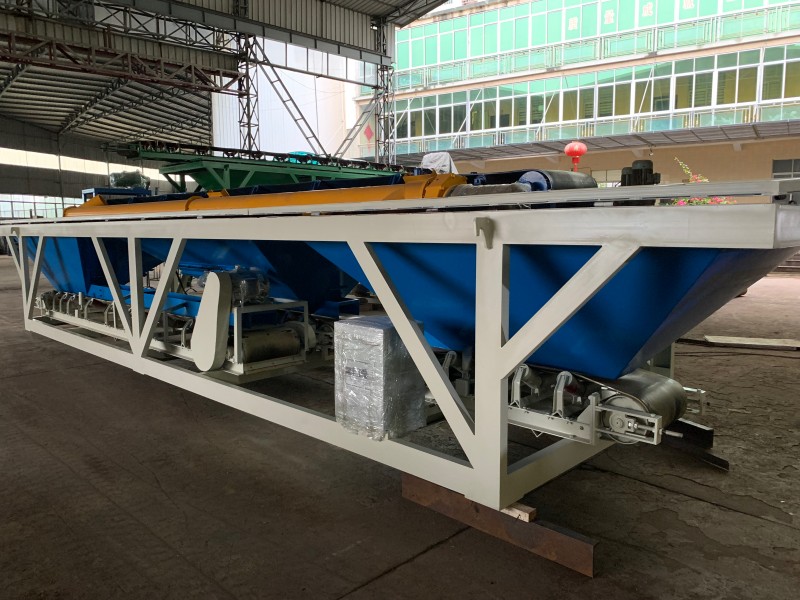

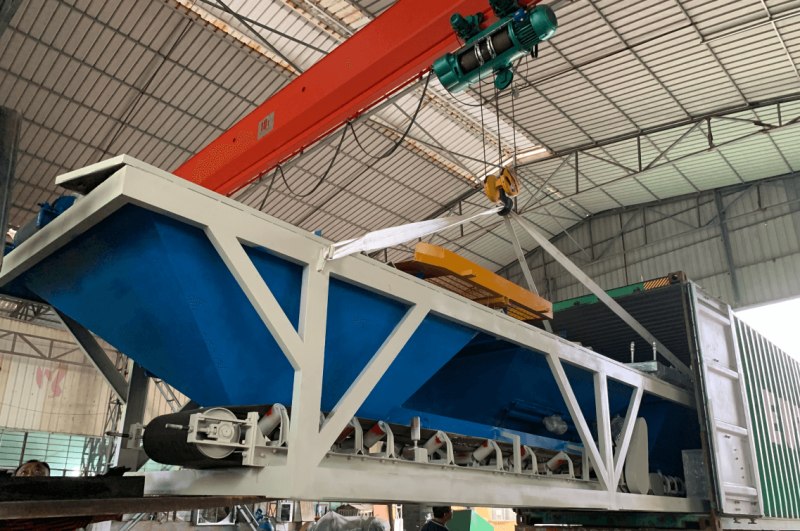

New installation of PL1600 Aggregate batching machine in South Africa

PL1600-III concrete batching machine is matched with our South Africa customer QT10 automatic block making machine,with three storage bins,each bin with the storage volume at 6m3.

It is a material equipment that can quickly and accurately complete the ratio of various aggregate according to the weight set by the user, which helps to ensure that the right quantities of each material and reduce waste and save time and cost. It also helps to reduce the risk of human error, which can lead to inconsistent concrete quality. The compact structure is simple operation, accurate ingredients and reliable control.

It consists of feeding system, electronic weighing system and electronic control system. With accurate metering licensing standards to realize fast and slow batching and metering. Equipped with vibration device to ensure smooth blanking. Apply automatic high-precision three-point induction sensors for different gradation of aggregates.

Hawen Machinery can provide different capacity of batching machine according to customer’s demand, such as PL800-I with single bin, PL800-II with two bins, PL1200-III with three bins or PL1200-IV with four storage bin, PL1600-III with three bin or PL1600-IV with four bins, PL2400-III with three storage bin,PL2400-IV with four storage bin etc.,it can be used for both block making machine plant or ready mixed batching plant.

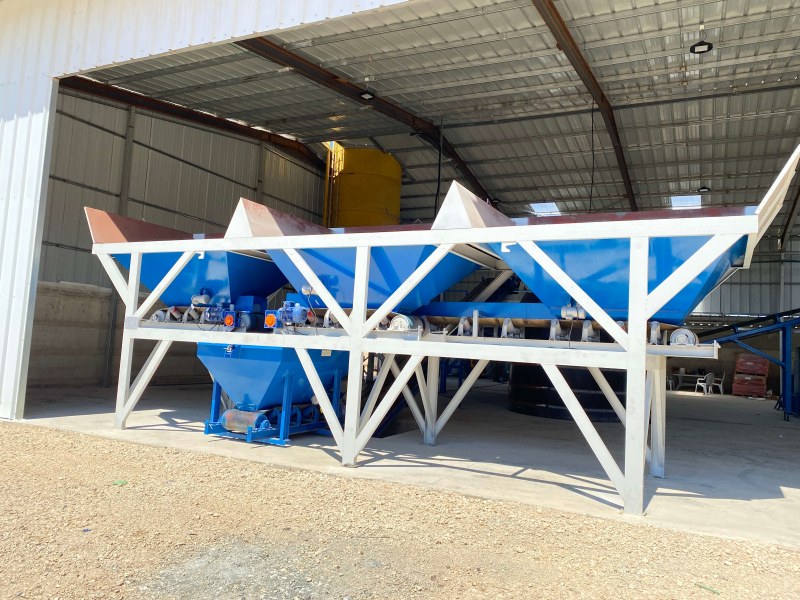

PL1600 batching machine in South Africa customer factory site
